Genova 19 TI 221 U -00
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1961 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 352444
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PC86 PC88 PCF86 PCC189 EF183 PCF80 EF80 PCL82 PCL84 PCF80 PCF80 PL36 PY81 DY87 PCL82 PY82 PY82 AW47-91
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 45900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

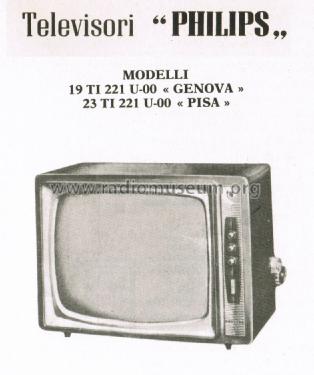

- Model: Genova 19 TI 221 U -00 - Philips Italy; Milano MI
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Televisore in bianco/nero con cinescopio alluminato da 19 pollici con deflessione 110°. VHF e UHF con selettore UHF incorporato.
Regolatore di tono.
Ricezione di emittenti funzionanti secondo le norme C.C.I.R.
- Mentioned in
- -- Schematic (Schemario TV Philips Service, Edizioni CELI 1972.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
