Georgette LD380AB
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7048
-
- Brand: Deutsche Philips-Ges.
Stabe
Frontansicht mit Antenne
Innenansicht mit abgeklappter Rückwand
Georgette, Abstimmskala
Georgette, Typenschild

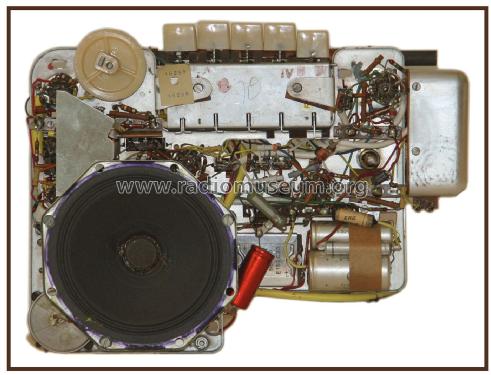

Georgette-Chassis, Bauteilseite
Georgette-Chassis, Verdrahtungsseite
Georgette, Teleskopantenne in Rückwand
aus ebay, Verkäufer = bigbigpetro
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / Deac BD2,5; 2×1,5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Georgette LD380AB - Philips Radios - Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 318 x 215 x 120 mm / 12.5 x 8.5 x 4.7 inch
- Notes
- Ladevorrichtung und Regenerierung.
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Price in first year of sale
- 255.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 1, Ernst Erb
