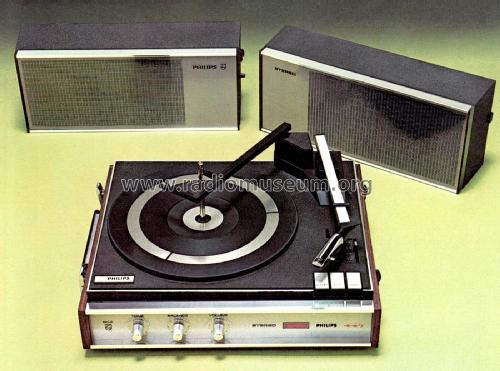

Stereo-Electrophon 22 GF447

Philips Radios - Deutschland

  • Year
  • 1968–1972
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 89244
    • Brand: Deutsche Philips-Ges.

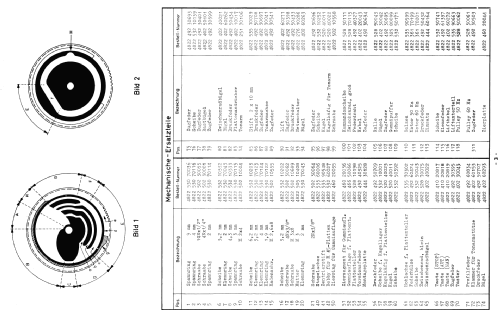

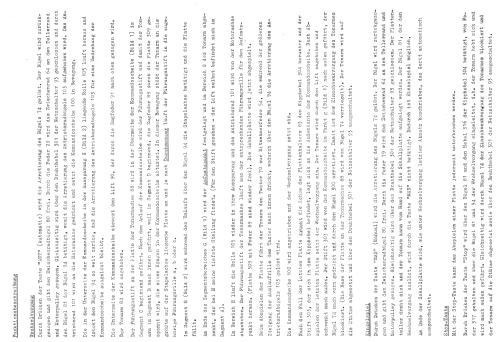

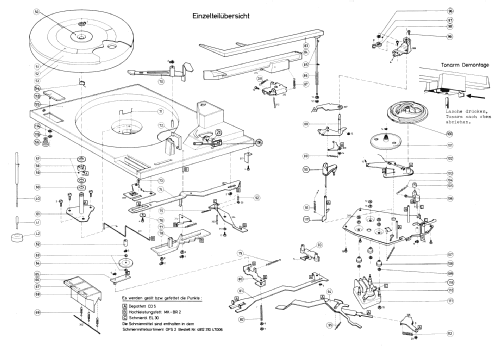

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo-Electrophon 22 GF447 - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 375 x 175 x 310 mm / 14.8 x 6.9 x 12.2 inch
  • Notes
  • Verstärkerkoffer. 4 Geschwindigkeiten; Kristallsystem GP200 mit Duplo-Nadel 946/DS51; Stereo-NF-Verstärker mit 2 Endstufen je 2,5 W.
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 330.00 DM
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
