Rechteckgenerator GM2324 /00 /02

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956–1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102228

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECC85 PL83 or E80L PL83 or E80L EZ80

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50-100 Hz, 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

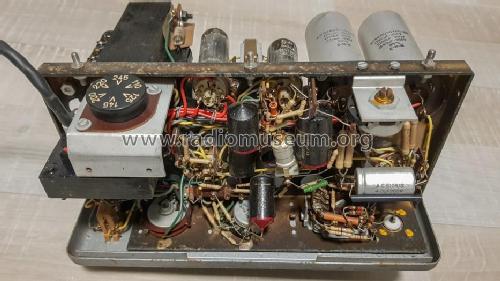

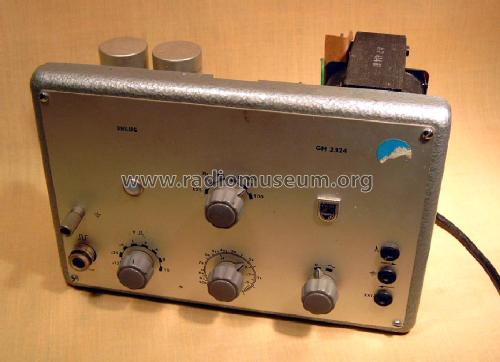

• Model: Rechteckgenerator GM2324 /00 /02 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 250 x 170 x 133 mm / 9.8 x 6.7 x 5.2 inch

• Notes

• Rechteckgenerator 25 Hz - 1 MHz in 5 Stufen und 10:1 Feinregulierung.

  Ausgangsspannung: in 8 Stufen zu 6 dB zwischen 0,1 V_ss und 15 V_ss einstellbar
  Ausgangswiderstand: 25 - 330 Ω
  Externe Steuerung: 25 Hz - 1 MHz, 4 - 30 V_ss

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 790.00 DM

• Source of data
• -- Original-techn. papers.
