• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1949

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 73149

• • Brand: Deutsche Philips-Ges.

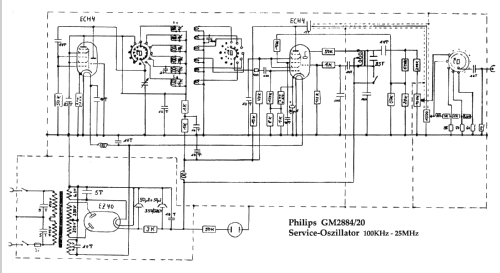

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH4 ECH4 EZ2

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

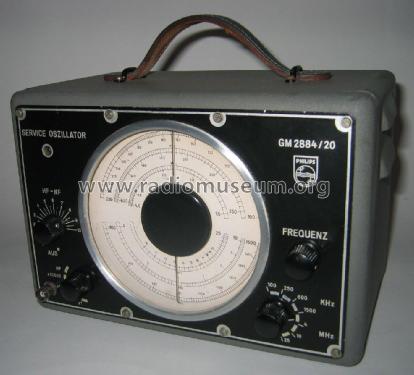

• Model: Service Oszillator GM2884/20 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 250 x 170 x 190 mm / 9.8 x 6.7 x 7.5 inch

• Notes

• Service-Oszillator, Frequenzbereich: 100 kHz bis 25 MHz in 6 sich überschneidenden Teilbereichen, interne AM-Modulation.
  Preis 1960: 595,-DM

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 458.00 DM

• Mentioned in
• Funk-Technik (FT) (22/1949, S. 671)

• Literature/Schematics (1)
• -- Original prospect or advert

• Literature/Schematics (2)
• Katalog Radio Fern, 1960

• Author
• Model page created by Martin Fichtinger. See "Data change" for further contributors.
