• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1950

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102277

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

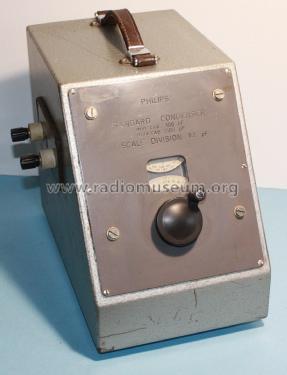

• Model: Variable standard capacitor GM4353 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 180 x 220 x 300 mm / 7.1 x 8.7 x 11.8 inch

• Notes

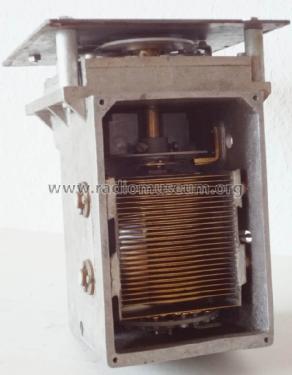

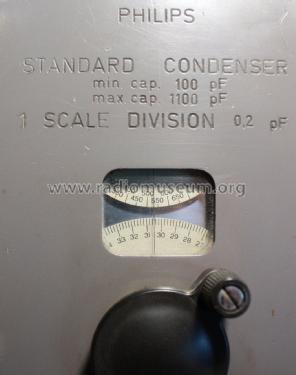

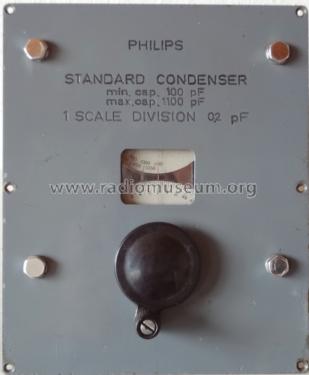

• Variable standard capacitors: 100-1100 pF, Accuracy: 1%, max. voltage: 750 V. Geeichter Drehkondensator höchster Genauigkeit und großer Konstanz mit genau linearem Kapazitätsverlauf für Meßzwecke. Im Holzgehäuse mit Spiegelskala.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 4,250.00 ATS

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Elektron Kalender 1950 (Österreich)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
