- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 199617
- Number of Tubes
- 7
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145, 200; 220; 245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

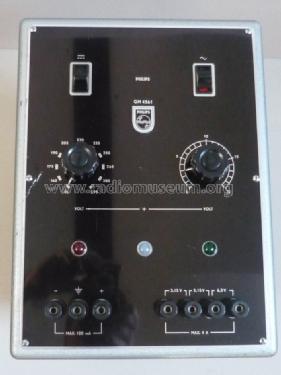

- Model: GM4561 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 225 x 315 x 400 mm / 8.9 x 12.4 x 15.7 inch
- Notes
- Stabilisiertes Hochspannungs-Netzgerät, Gleichstrom 145 bis 315 V, 100 mA in elf Stufen einstellbar, innerhalb jeder Stufe 20 Volt stufenlos regelbar. Somit können alle Spannungen lückenlos eingestellt werden. Zusätzlicher Wechselspannungsanschluss für Röhrenheizungen zweimal 3,15 V, einmal 6,3 Volt in Serie schaltbar für 12,6 Volt, max. 4 A.
- Net weight (2.2 lb = 1 kg)
- 19.5 kg / 42 lb 15.2 oz (42.952 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Henri Béguin. See "Data change" for further contributors.
