Oscilloscope GM5600
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1961–1964
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 102177
Radio Constructeur et Dépanneur mars 1963
Front panel of Philips GM 5600 X / 01
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope GM5600 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 160 x 250 x 340 mm / 6.3 x 9.8 x 13.4 inch
- Notes
- HF-Oscilloscope: DC...5 MHz.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 925.00 DM
- Mentioned in
- -- Original prospect or advert (Funkschau 1962, Heft 12, S.323)
- Literature/Schematics (1)
- Radio Constructeur et Dépanneur mars 1963.
- Literature/Schematics (2)
- Radioschau Juli 1961
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
- Other Models
-
Here you find 5245 models, 4387 with images and 3446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model Oscilloscope is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: Oscilloscope GM5600
Threads: 1 | Posts: 2
Dear all,

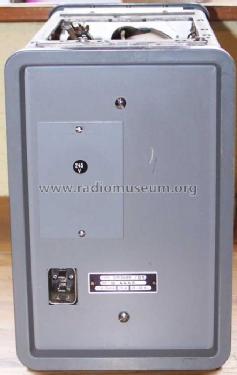

As can be seen from the picture of the backplane this equipment has a (for me) strange power cord connector.
Metal square with 2 flat pins. Year 1961-1964.
Can anybody tell me what this is called and where to find one for my GM5600.
It looks a bit like the older 2 prong UK power cords, but this would of course need the female part.
Thank you
Erwin
Erwin Serle, 25.Nov.24
