GM5655/01

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1946–1953 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 71844

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 ECH21 ECH21 EZ2 EZ2 DG7-6

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: GM5655/01 - Philips; Eindhoven tubes

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 115 x 235 x 265 mm / 4.5 x 9.3 x 10.4 inch

• Notes

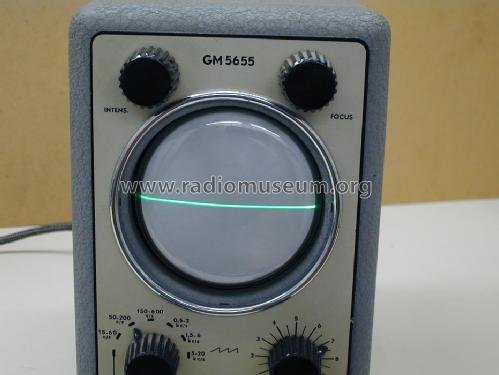

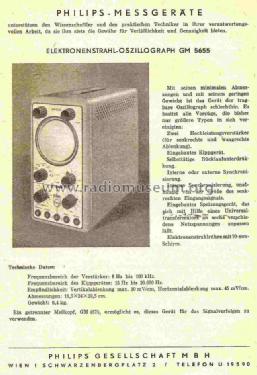

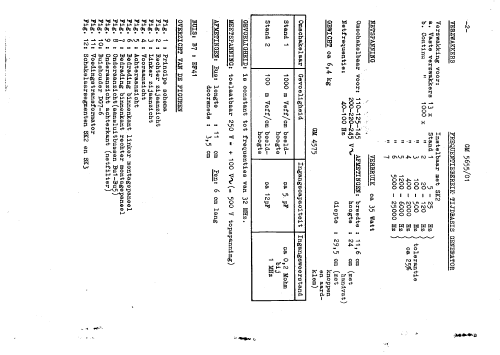

• Elektronenstrahlröhre mit 70 mm Schirm. Frequenzbereich der Verstärker: 6 Hz bis 100 kHz. Frequenzbereich des Kippgerätes: 15 Hz bis 20.000 Hz. Empfindlichkeit: Vertikalablenkung max. 30 mV/cm, Horizontalablenkung max. 45 mV/cm. Der Meßkopf GM 4575 ermöglicht es, das Gerät als Signalverfolger zu verwenden.

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Price in first year of sale
• 2,250.00 ATS

• Mentioned in
• Elektron Kalender 1950 (Österreich)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
