- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 74621
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Material
- Metal case
- from Radiomuseum.org

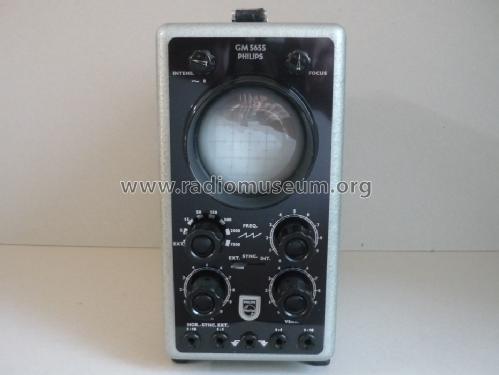

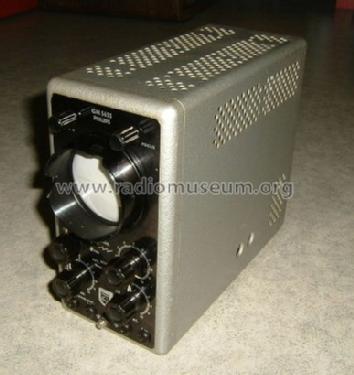

- Model: GM5655/03 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 116 x 245 x 300 mm / 4.6 x 9.6 x 11.8 inch
- Notes
- One channel service oscilloscope. Other variants are GM5655/01 and GM5655/02. Accessory is a HF probe GM 4575/01.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Georges Van Campenhout † 28.4.22. See "Data change" for further contributors.
