Oszilloskop GM5659
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1954
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 73089
Top of chassis showing CRT
Left side of chassis
Right side of chassis

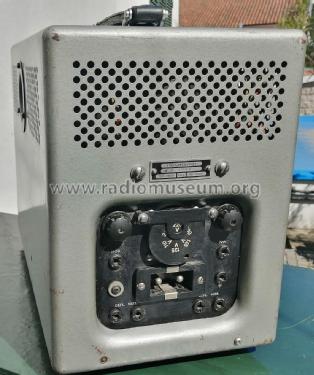

Rear of chassis
Underside of unit
W. Scheida
W. Scheida
Radio Constructeur et Dépanneur 1954
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszilloskop GM5659 - Philips; Eindhoven tubes
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 210 x 300 x 400 mm / 8.3 x 11.8 x 15.7 inch
- Notes
- Zweikanal-Service-Oszilloskop.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Price in first year of sale
- 1,390.00 DM
- Mentioned in
- Katalog Radio Fern, 1960
- Literature/Schematics (1)
- Hilfsbuch für Katodenstrahloszillografie, H. Richter, 2.Aufl., 1953, Franzis-Verlag
- Author
- Model page created by Martin Fichtinger. See "Data change" for further contributors.
