• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1961–1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 79416

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• E80F E80F EF86 EF86 EF86 E88CC EAA91 EAA91 PCL82 EZ80 85A2 85A2

• Number of Transistors

• Semiconductors
• OA79 OA202 OA202 OA202 OA202 OA202 OA202 OA202

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

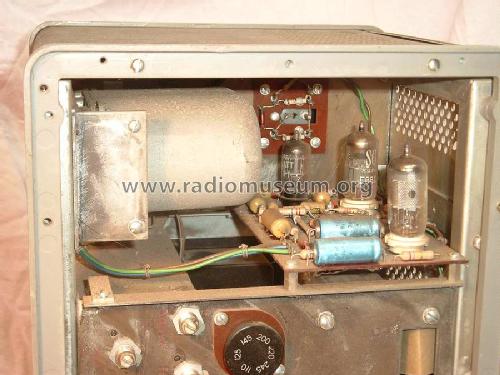

• Model: UHF-Millivoltmeter GM6025 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 360 x 240 x 220 mm / 14.2 x 9.4 x 8.7 inch

• Notes
• Messbereiche: 10 mV bis 10 Volt bei 100 kHz bis 800 MHz in 7 Bereichen.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 1,680.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original prospect or advert (Radioschau, Heft 2, 1961)

• Literature/Schematics (2)
• - - Manufacturers Literature (Katalog: Philips Industrie-Elektronik 1966)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
