• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1972/1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 104876

• • Brand: Deutsche Philips-Ges.

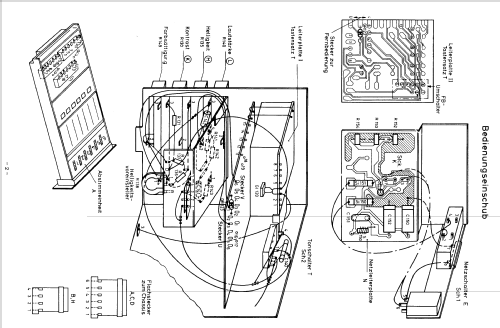

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PL802 PCF80 PCF200 PCL86 PCF802 PL519 PY500 GY501 PD510 PL508 A66-140X

• Number of Transistors
• 79

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

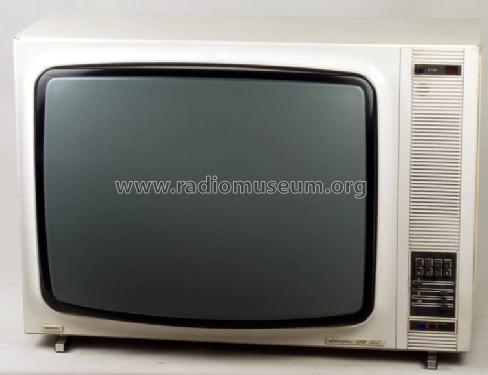

• Model: Goya 110 SL weiß - D26K166 D 26 K 166 Ch=K8D - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 750 x 530 x 460 mm / 29.5 x 20.9 x 18.1 inch

• Notes

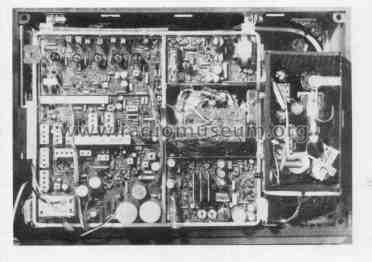

• 89 Dioden. 2 IC,s Gerät mit Chassis K8D bestückt.Einige Röhren mehrfach vorhanden. Letztes Philips CTV-Röhren-Chassis, mit 110 Grad Dickhalsröhre. Tuner mit Kapazitätsdioden für VHF und UHF.

• Net weight (2.2 lb = 1 kg)
• 47 kg / 103 lb 8.4 oz (103.524 lb)

• Source of data
• Handbuch VDRG 1972/1973

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
