Goya Luxus D25K860/02 Ch= K6N

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1968/1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 85769

• • Brand: Deutsche Philips-Ges.

• Picture

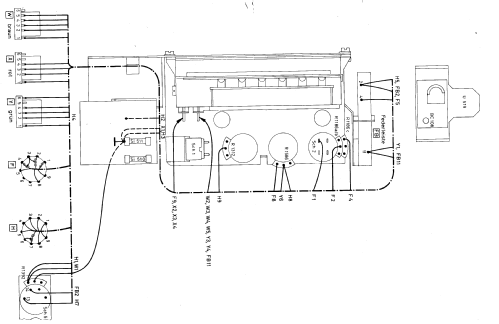

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 27

• Valves / Tubes
• EF183 EF184 PCF200 PFL200 PCC85 PCH200 PCF802 PL509 PL504 PY500 GY501 PD500 DY51 PL508 PCF201 PCL86 A63-11X

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Goya Luxus D25K860/02 Ch= K6N - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Notes

• Philips Goya Luxus D25K860;
  Diodenabgestimmter Allbereichstuner für VHF/UHF.

  Röhren sind 1x pro Typ gelistet.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Jörg Kirchhof. See "Data change" for further contributors.
