• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1972/1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 104866

• • Brand: Deutsche Philips-Ges.

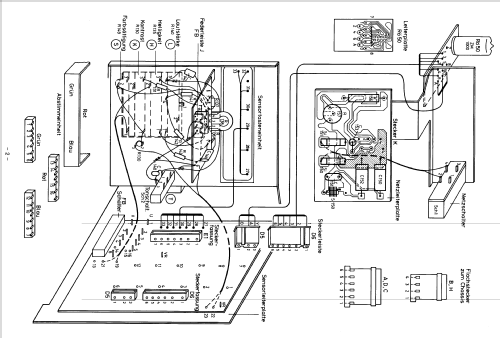

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PL802 PCF80 PCF200 PCL86 PCF802 PL519 PY500 GY501 PD510 PL508 A66-140X ZM1000

• Number of Transistors
• 85

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Goya Royal - D26K266 D 26 K 266 Ch=K8D - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 740 x 530 x 460 mm / 29.1 x 20.9 x 18.1 inch

• Notes
• 94 Dioden, 4 ICs. Röhren teilweise mehrfach vorhanden. Tuner mit Kapazitätsdioden für VHF und UHF.
  Letztes Philips CTV-Röhren-Chassis, mit 110° Dickhalsröhre.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Source of data
• Handbuch VDRG 1972/1973

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
