Goya SL Vitrine D25K974 Ch= K7
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 193729
-
- Brand: Deutsche Philips-Ges.

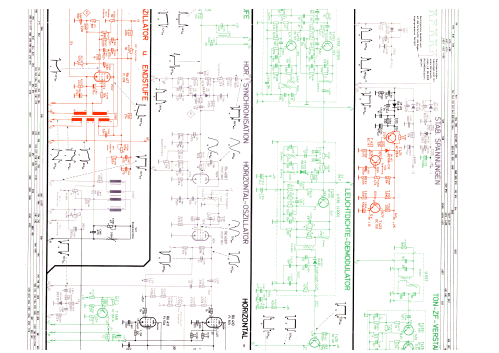

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PCL86 PCF200 PCF200 PCF200 PL802 PL508 PCF80 PL504 PL509 PY500 PD500 GY501 PCF802 A63-11X
- Number of Transistors
- 53
- Semiconductors
- TAA550
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Goya SL Vitrine D25K974 Ch= K7 - Philips Radios - Deutschland
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 960 x 920 x 620 mm / 37.8 x 36.2 x 24.4 inch
- Notes
- 60 Dioden, 1 Intergrierter Schaltkreis,
Anschlussbereit für Fernbedienung 69 Luxus.
- Net weight (2.2 lb = 1 kg)
- 60 kg / 132 lb 2.5 oz (132.159 lb)
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Philips Handbuch für den Fachhandel, Ausgabe 69/70 (466 Seiten in DinA6 Format)
- Author
- Model page created by Günter Döring. See "Data change" for further contributors.
