• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1968/1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 104218

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 27

• Valves / Tubes
• EF183 EF184 PCF200 PFL200 PCL86 PCC85 PCH200 PCF802 PL509 PL504 PY500 GY501 PD500 DY51 PL508 PCF201 A63-11X

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

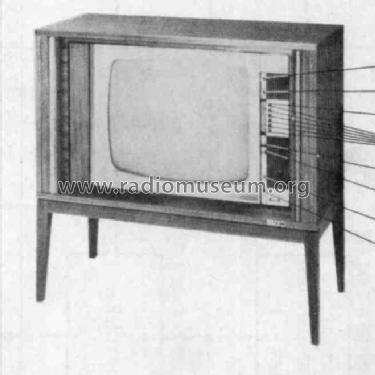

• Model: Goya-Vitrine D25K771 Ch= K6 - Philips Radios - Deutschland

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 970 x 910 x 640 inch / 24638 x 23114 x 16256 mm

• Notes
• Röhren teilweise mehrfach. VHF/UHF. Chassis K6.

• Net weight (2.2 lb = 1 kg)
• 60 kg / 132 lb 2.5 oz (132.159 lb)

• Source of data
• Handbuch VDRG 1968/1969

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
