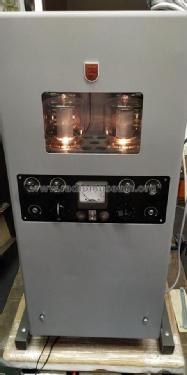

Großverstärker EL6472/00
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1955 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 200580
Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2000 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Großverstärker EL6472/00 - Philips; Eindhoven tubes
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 524 x 1010 x 670 mm / 20.6 x 39.8 x 26.4 inch
- Notes

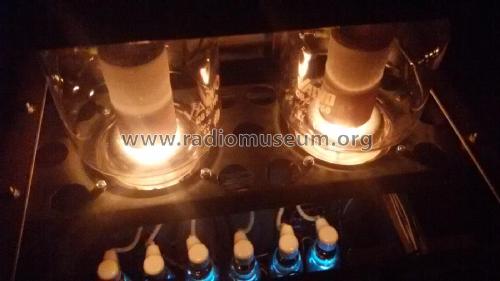

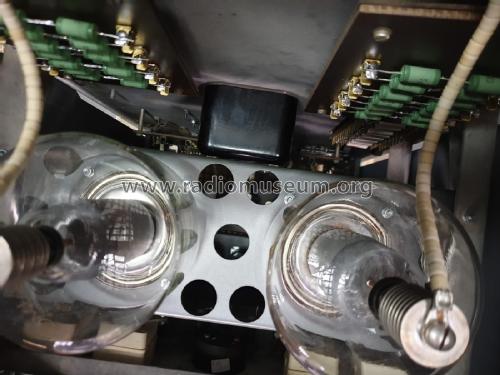

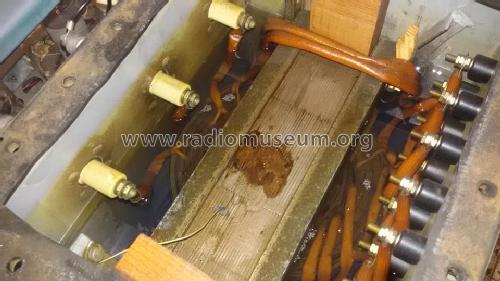

- Netzteil mit Drehstrom-Trafo für Endstufe und Wechselstrom-Trafo für andere Anodenspannungen und Heizspannungen - 127/220V oder 220/380V Drehstrom mit Nullleiter.
Röhren sind mehrfach vorhanden.
- Net weight (2.2 lb = 1 kg)
- 245 kg / 539 lb 10.4 oz (539.648 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
