• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30130

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-127 or 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

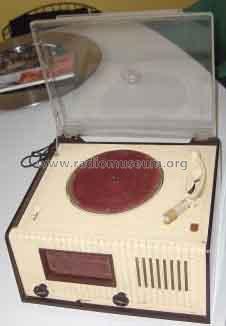

• Model: H3X78A /00 /01 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 374 x 195 x 355 mm / 14.7 x 7.7 x 14 inch

• Notes

• Wavebands:
  LW = 150 - 260 kHz
  MW = 517 - 1622 kHz

  Record player: 4-speed type AE 151 50 (modified AG2002)
  Speaker: type AD3500, Z = 5 Ω

  Versions:

  • /00 for 220 V
  • /01 for 110 to 127 V

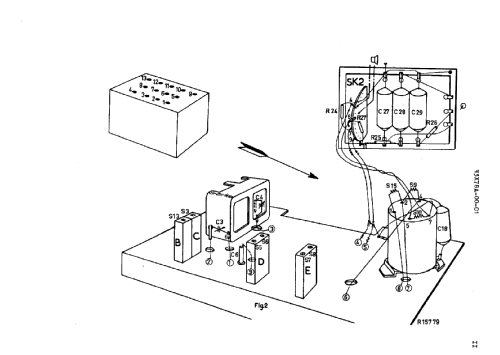

  Both versions can be adapted to the other voltage range by making minor internal modifications (see documentation).

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
