• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 292347

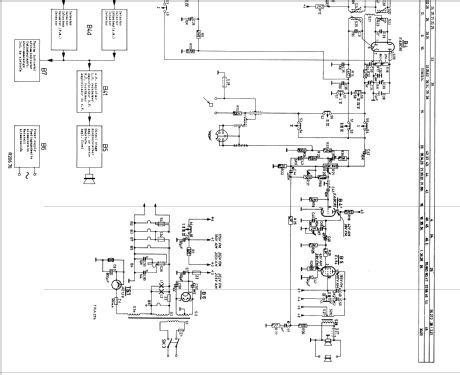

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EL84 EZ80

• Number of Transistors
• 1

• Semiconductors
• AC128

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: H4X32A /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 310 x 230 mm / 19.3 x 12.2 x 9.1 inch

• Notes

• FM range: 87.5 - 104 MHz
  FM tuner unit: A3 265 61
  Speaker: AD3460M (Z = 5 ohms)

  Record player AG2040 with pick-up element AG3310. Transistor AC128 is used as diode for motor control.

  See also model H4X32A with magic eye incorprated in the dial scale.
