• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964/1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 110732

• • Brand: Deutsche Philips-Ges.

• Number of Tubes
• 2

• Valves / Tubes
• ECC83 EL95

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

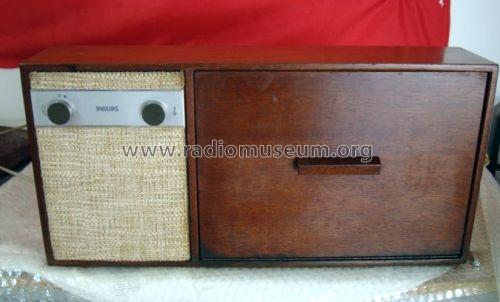

• Model: Heim-Electrophon SK52 - Philips Radios - Deutschland

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 490 x 235 x 115 mm / 19.3 x 9.3 x 4.5 inch

• Notes
• Teakholzschatulle mit herausklappbarem Laufwerk zum Aufstellen in Regalen oder für Wandbefestigung. Laufwerk mit 33 und 45 UpM; Kristall-System AG3310 mit Duplo-Nadel.

• Net weight (2.2 lb = 1 kg)
• 4.4 kg / 9 lb 11.1 oz (9.692 lb)

• Price in first year of sale
• 275.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
