• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138442

• • Brand: Deutsche Philips-Ges.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4,5 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

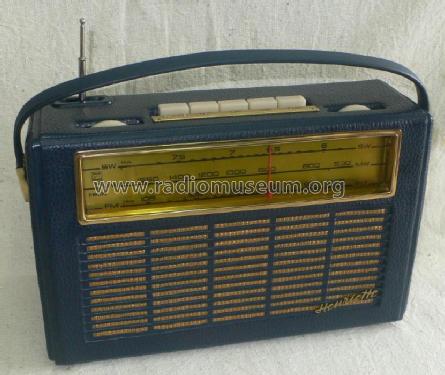

• Model: Henriette 323 L3D23T/79 [Export] - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 185 x 90 mm / 10.8 x 7.3 x 3.5 inch

• Notes
• Philips Henriette 323 Typ L3D23T/79 ist die
  Exportausführung von Henriette L3D23T. UKW/FM Bereich bis 108 MHz, Skala trägt keine Sendernamen.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
