• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1983 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 285575

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC547 BC548 BC548 BC557 BC557 BC558 BDT95 BDT95 BDT96 BDT96 IR2E01 IR2E01 NJM2041 µPC1225 µPC1225

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 84 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

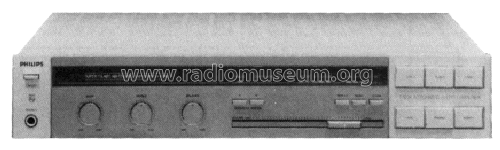

• Model: Hi-Fi Amplifier F4234 /00 /01 /05 /10 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 470 x 73 x 300 mm / 18.5 x 2.9 x 11.8 inch

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
