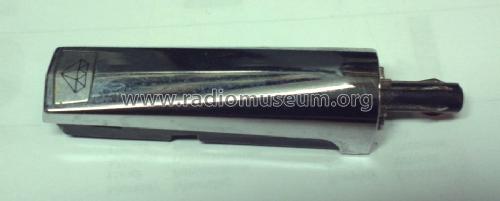

Hi-Fi Ceramic Stereo Cartridge AG3310
Philips Belgium (Belgien)
- Country
- Belgium
- Manufacturer / Brand
- Philips Belgium (Belgien)
- Year
- 1963–1969
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 249467
Foto de Francisco Martins.
Foto de Francisco Martins.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hi-Fi Ceramic Stereo Cartridge AG3310 - Philips Belgium Belgien
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 16 x 64 x 14 mm / 0.6 x 2.5 x 0.6 inch
- Notes
-
Stereo cartridge with diamond and sapphire styli.
Frequency response: 20 - 16000 Hz
Output voltage: 325 mV
Needle pressure: 4-6 grReplacement cartrigde type: GP200 (22GP200)
Replacement stylus types:
946/DS 51, dual - sapphire normal 75 µ, diamond micro and stereo 18 µ, color marking: gold
- Mentioned in
- Funk-Technik (FT) (9/1963, S. 325, 326 / Beschreibung (Neuvorstellung))
- Literature/Schematics (1)
- - - Manufacturers Literature (Replacement list 1971)
- Literature/Schematics (2)
- - - Manufacturers Literature (Philips Service, 1964)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
