Hi-Fi FM Afstemeenheid Bouwpakket FM13 HO

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1962
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 230451

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Semiconductors
  • OA81
  • Main principle
  • Superhet with RF-stage; ZF/IF 10700 kHz; 1 AF stage(s)
  • Tuned circuits
  • 11 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 127; 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Hi-Fi FM Afstemeenheid Bouwpakket FM13 HO - Philips; Eindhoven tubes
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 280 x 105 x 240 mm / 11 x 4.1 x 9.4 inch
  • Notes

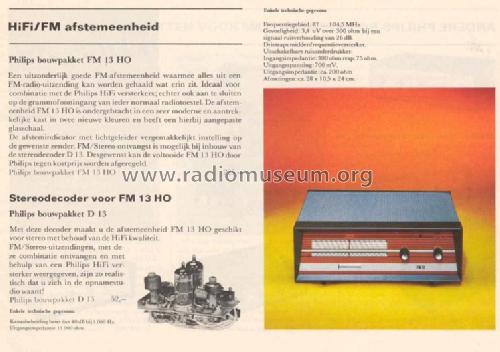

  • Philips Kit Tuner FM13.

    • Tuning range: 87 - 104.5 MHz
    • Sensitivity: 3.4 µV (300 Ohm, 26 dB)
    • three-stage IF amplifier

    Optional Stereo Decoder Bouwpakket D13 (utilizing ECF80 and ECC82).

    The tuner was also available completely assembled for a surcharge.
    1967 still listed in Philips catalogs.

  • Price in first year of sale
  • 225.00 NLG
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Geert Kroezinga. See "Data change" for further contributors.
