Hi-Fi Phono-Cassette-Receiver TAPC-6955 /90

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208509

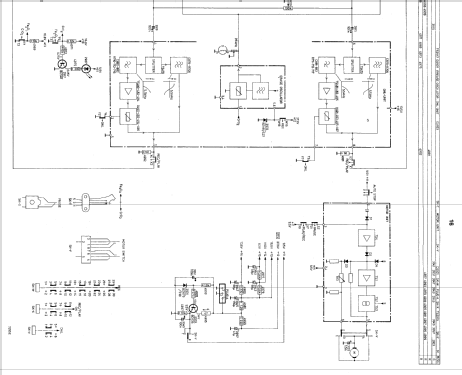

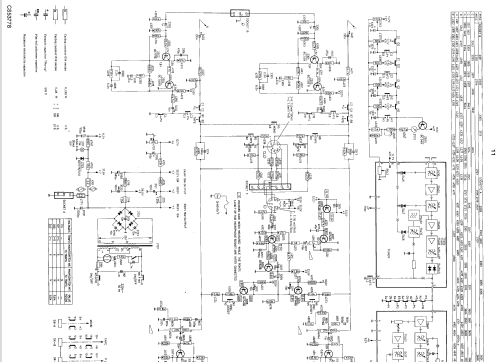

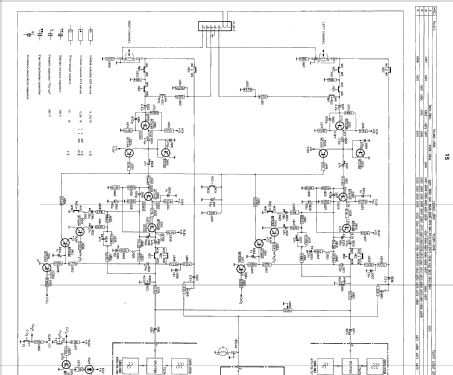

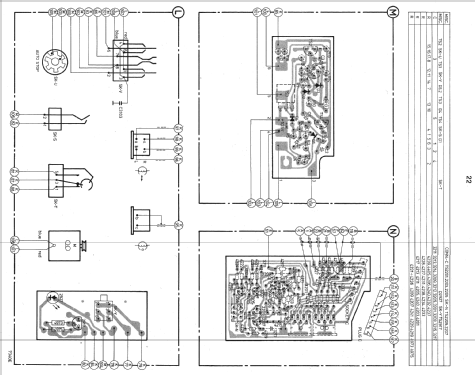

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 53
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Hi-Fi Phono-Cassette-Receiver TAPC-6955 /90 - Philips; Eindhoven tubes
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 574 x 140 x 344 mm / 22.6 x 5.5 x 13.5 inch
  • Notes
  • Hi-Fi combination with radio-cassette players and turntables.
    Wave range: 87,5 ÷ 104 MHz.
    Tape speed: 4,76 cm/sec.
    Turntable speeds: 33 1/3- 45 omw/min.
    Output power 2x 15 Watt (4 Ohm).

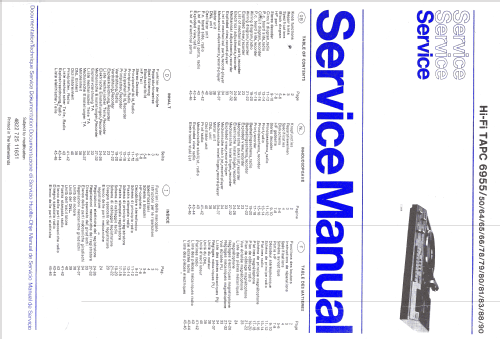

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
