Hi-Fi Phono-Cassette-Receiver TAPC-6970 /83
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 208697

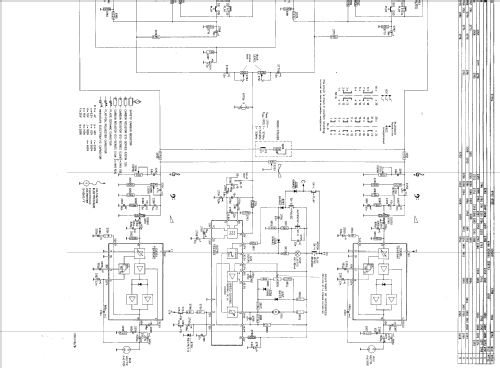

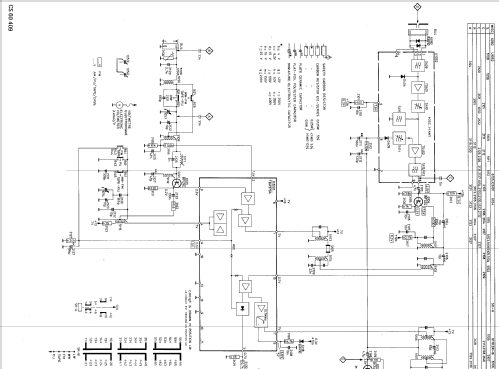

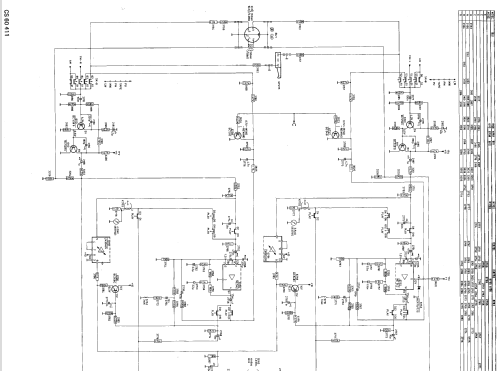

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hi-Fi Phono-Cassette-Receiver TAPC-6970 /83 - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Notes
- Hi-Fi combination with radio-cassette players and turntables.
Wave range:
LW: 150 ÷ 255 kHz.
MW: 520 ÷ 1605 kHz.
FM: 87,5 ÷ 104 MHz.
Tape speed: 4,76 cm/sec.
Turntable speeds: 33- 45 omw/min.

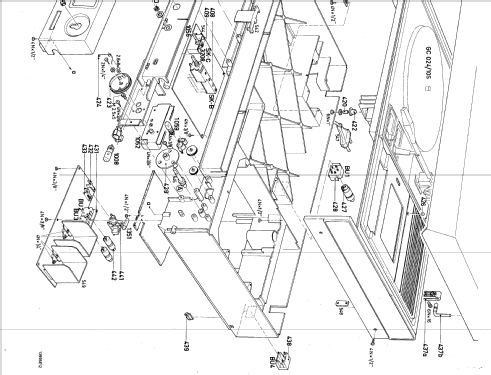

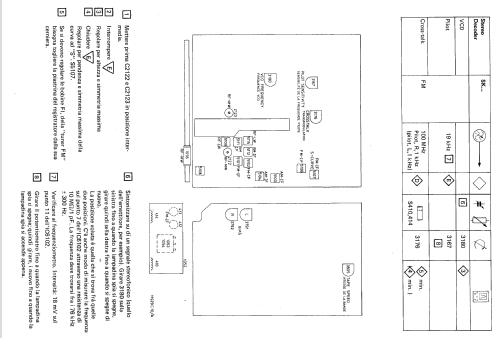

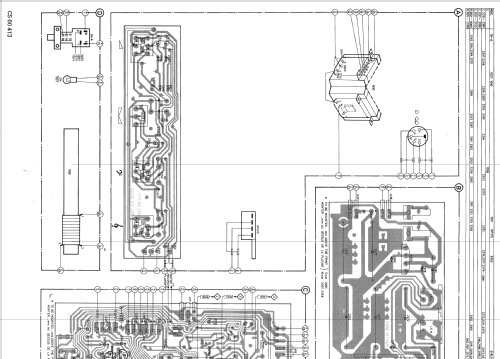

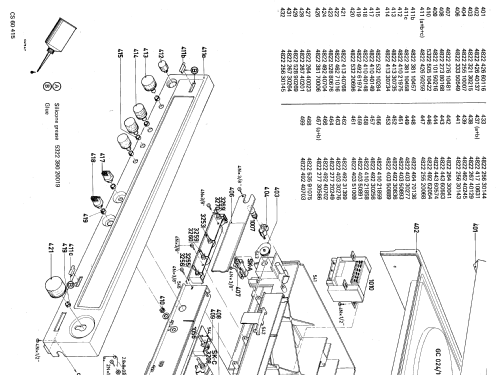

- Literature/Schematics (1)

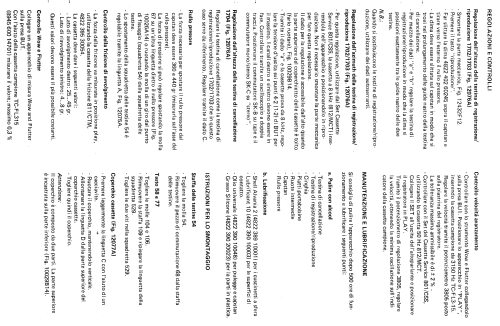

- -- Original-techn. papers.
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
