Hi-Fi Phono-Cassette-Receiver TAPC-6982 /50

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1980
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 209648

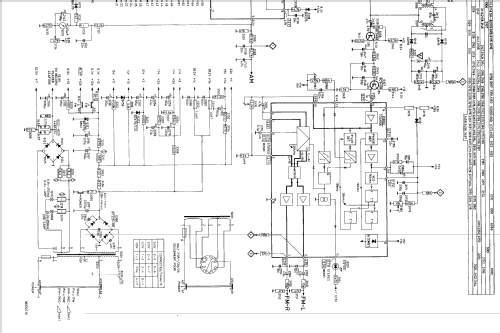

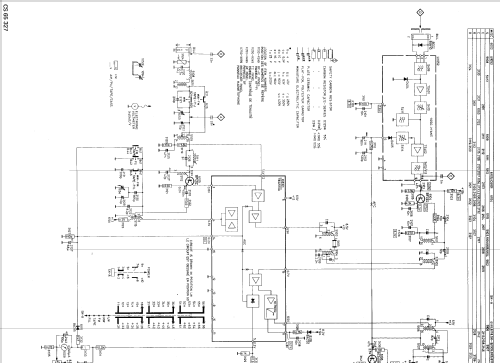

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 33
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Hi-Fi Phono-Cassette-Receiver TAPC-6982 /50 - Philips; Eindhoven tubes
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 626 x 110 x 400 mm / 24.6 x 4.3 x 15.7 inch
  • Notes
  • Hi-Fi combination with radio-cassette player and turntable.

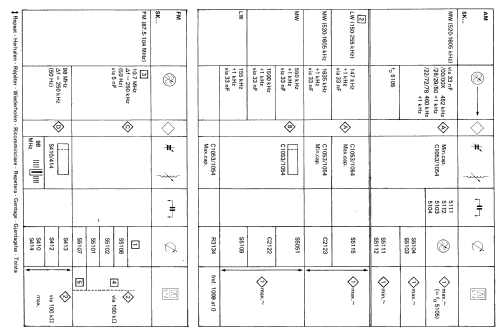

    Wave bands:
    LW: 150 - 255 kHz.
    MW: 520 - 1605 kHz.
    FM: 87.5 - 104 MHz.
    Tape speed: 4.76 cm/sec.
    Turntable type Philips 22AF085/00, speeds: 33 - 45 rpm.
    Power output 2x 25 Watt.
    One semiconductor per type listed.

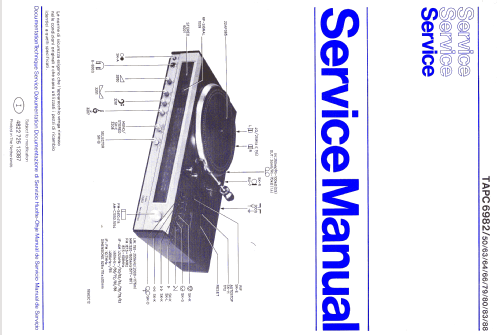

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
