Hi-Fi Pre Amplifier 6290 /15
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1980 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 207848
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 34
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Hi-Fi Pre Amplifier 6290 /15 - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 482 x 68 x 340 mm / 19 x 2.7 x 13.4 inch
- Literature/Schematics (1)

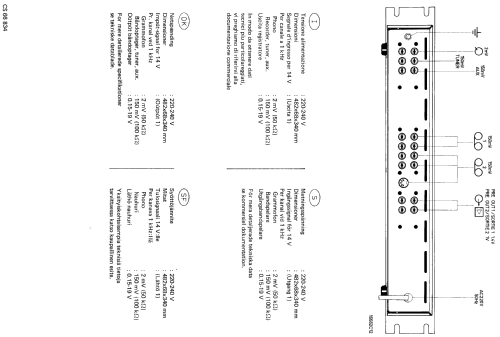

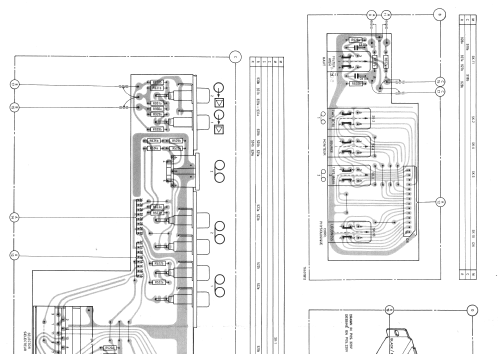

- -- Original-techn. papers.
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
