• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1954–1957

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 20370

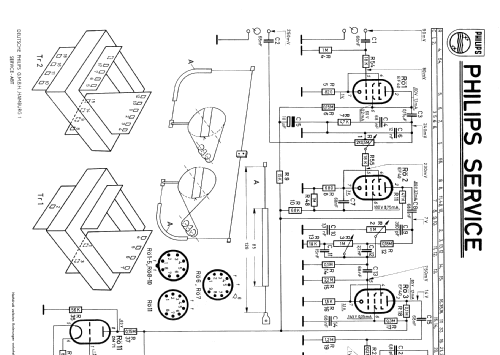

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• EF40 EF40 EF40 EF40 DM70 EF40 EL81 EL81 EZ40 EZ40 EZ40

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 15 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Hi-Fi Versterker AG9000 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 190 x 245 mm / 13 x 7.5 x 9.6 inch

• Notes
• Philips High-Fidelity type AG9000 for grammophone, radio or tape reproduction.

  Input terminals:
  - AES: 1 MOhm impedance, 90 mV sensitivity, -50 dB S/N ratio
  - straight: 0,5 MOhm impedance, 250 mV sensitivity, -60 dB S/N ratio
  Output impedance: 7/14/500 Ohm switchable
  Frequency response: 20 - 20000 Hz ± 2 dB.

  Recommended speaker setup: Hi-Fi Speaker Combination AD5002, consisting of two satellites and one acoustic box.

  Please note: there are different brochures with divergent data:
  English brochure: weight 7.2 kg.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 1,990.00 DM

• External source of data
• Erb

• Source of data
• -- Original-techn. papers.

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1956/57

• Literature/Schematics (1)
• HdB d.Rdf-& Ferns-GrH 1955/56
