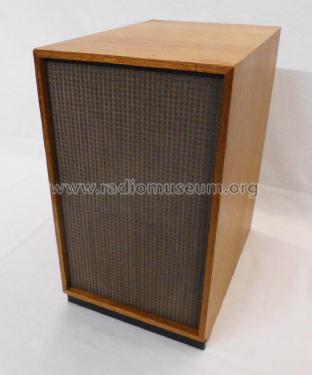

HiFi-Lautsprecher-Box KD 1037
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1967/1968
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 286161
-
- Brand: Deutsche Philips-Ges.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers
- Power out
- 20 W (max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi-Lautsprecher-Box KD 1037 - Philips Radios - Deutschland
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 160 x 280 x 240 mm / 6.3 x 11 x 9.4 inch
- Notes
-
2 Weg HiFi Minibox
Tieftonlautsprecher Ø130 mm, Mittel-Hochtonlautsprecher Ø45 mm,
Übertragungsbereich: 40 - 20.000 Hz, Musikbelastbarkeit 20 W, 8 Ω, Volumen ca. 7,0 l.Teakholzfurnier
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Mentioned in
- -- Original-techn. papers. (HiFi Jahrbuch III 1967/68)
- Author
- Model page created by Michael Lienhop. See "Data change" for further contributors.
