Motional Feedback Box (MFB) 544 Electronic 22RH544 /00R /15R
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1976–1979
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 197466

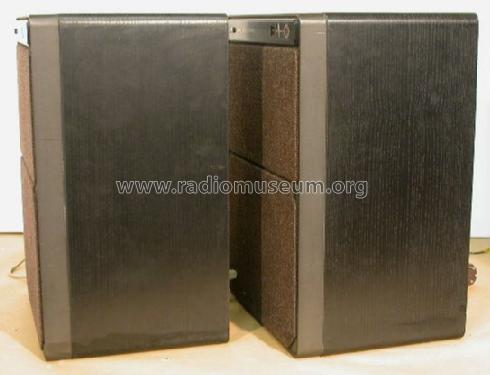

HP après restoration
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 30
- Semiconductors
- BC558 BC548 BD137 MJ3001 MJ2501 BC549 BC559 BC547 BC548 BC558 BC546 BD267 or. BD266 BC550 BF245 BC639 BSS68
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Loudspeaker + integr.Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 60 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Motional Feedback Box 544 Electronic 22RH544 /00R /15R - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 290 x 390 x 220 mm / 11.4 x 15.4 x 8.7 inch
- Notes
-
Die bekannteste HiFi-Lautsprecherbox aus dem Philips MFB-Programm. Mit integrierter 60-Watt-Leistungselektronik. Aktive Lautsprecherbox mit Beschleunigungs-Gegenkopplung, 3-Weg-2-Kanal, Übertragungsbereich: 30-20000Hz, Lautsprecherart: Tiefton mit PXE 8", Kalottenmittelton 2", Kalottenhochton 1", Volumen 15 Liter (davon 9 Liter für Akustik und 6 Liter für Elektronik), Gehäuse: Esche schwarz, Anschlüsse: Stereo-Eingang DIN 5 Pol, Stereo-Ausgang DIN 5 Pol, Netz 220V.
Halbleiter nur einmal pro Typ gelistet.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- Handbuch VDRG 1976/1977
- Literature/Schematics (1)
- Handbuch VDRG 1977/1978
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Günter Döring. See "Data change" for further contributors.
