HiFi-Phono-Cassetten-Receiver 973 TAPC Dolby 22AH973 /22

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 198096
    • Brand: Deutsche Philips-Ges.

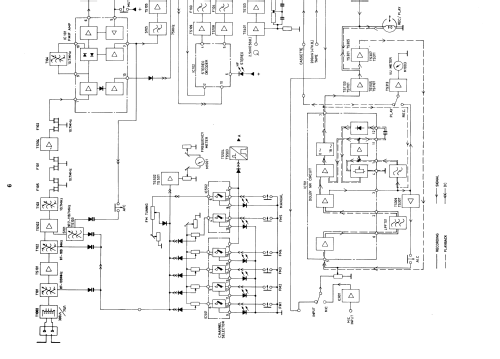

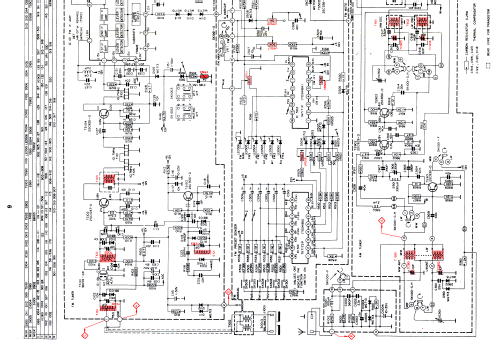

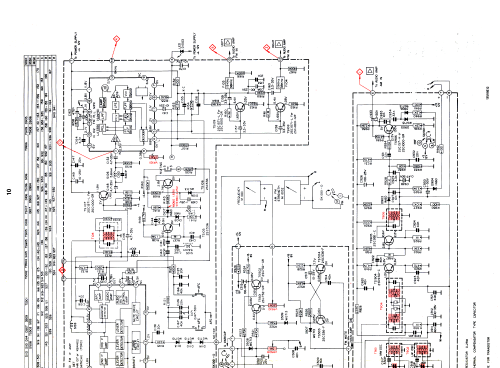

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 68 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HiFi-Phono-Cassetten-Receiver 973 TAPC Dolby 22AH973 /22 - Philips Radios - Deutschland
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 600 x 200 x 400 mm / 23.6 x 7.9 x 15.7 inch
  • Notes
  • 2 Instrumente zur Feldstärke und UKW-Mittenanzeige, Automatische UKW-Scharfabstimmung (AFC), 2x Anschluss Stereo-Kopfhörer frontseitig, 2 Lautsprecherkreise für "Stereo-4" Raumklang-Effekt.
    2x34W an 4 Ohm, 2x26W an 8Ohm.
    HiFi-Plattenspieler mit Tonabnehmersystem SUPER M 400II, direktanzeigende Tonarmwaage.
    HiFi-Cassetten-Recorder mit DOLBY Schaltung, elektronisch geregelter Motor.
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Günter Döring. See "Data change" for further contributors.
