• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1980 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 272514

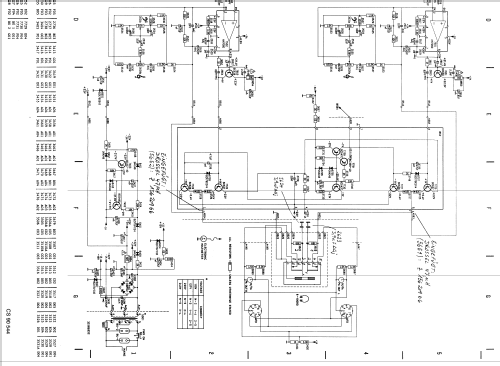

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: HiFi Pre-Amplifier F3434 /00 - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 320 x 60 x 247 mm / 12.6 x 2.4 x 9.7 inch

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
