HiFi-Stereo-Receiver AH683TA 22AH683 /00 /15 /22 /29 /79

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197983

• • Brand: Deutsche Philips-Ges.

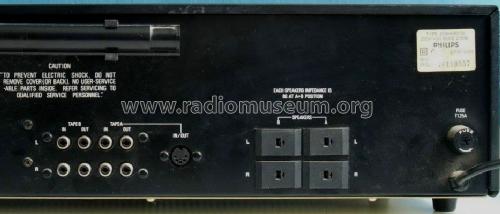

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 94 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi-Stereo-Receiver AH683TA 22AH683 /00 /15 /22 /29 /79 - Philips Radios - Deutschland

• Dimensions (WHD)
• 482 x 150 x 405 mm / 19 x 5.9 x 15.9 inch

• Notes

• HiFi-Stereo-Receiver 22AH683 - AH22AH683.
  Schwungradabstimmung, 2 Instrumente zur Feldstärke und UKW-Mittenanzeige, Automatische UKW-Scharfabstimmung (AFC), Anschluss Stereo-Kopfhörer frontseitig, 2 Lautsprecherkreise für "Stereo-4" Raumklang-Effekt.

  HiFi-Receiver 683TA ist identisch mit HiFi-Receiver 684TA, unterscheiden sich nur in ihrer Ausgangsleistung.

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
