HiFi-Receiver 684TA 22AH684

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 197984
    • Brand: Deutsche Philips-Ges.

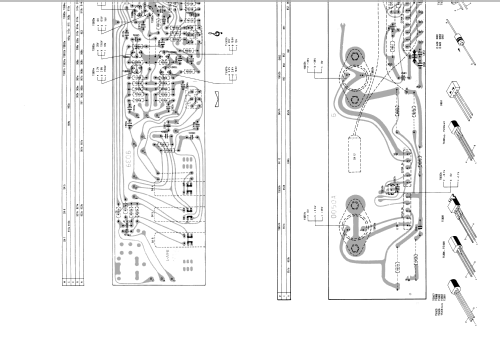

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 106 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HiFi-Receiver 684TA 22AH684 - Philips Radios - Deutschland
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 482 x 150 x 405 mm / 19 x 5.9 x 15.9 inch
  • Notes

  • Schwungradabstimmung, 2 Instrumente zur Feldstärke und UKW-Mittenanzeige, Automatische UKW-Scharfabstimmung (AFC), Anschluss Stereo-Kopfhörer frontseitig, 2 Lautsprecherkreise für "Stereo-4" Raumklang-Effekt.
    2x58W an 4 Ohm, 2x50W an 8Ohm.
    HiFi-Receiver 684TA ist identisch mit HiFi-Receiver 683TA, unterscheiden sich nur in ihrer Ausgangsleistung.

    684TA is a catalog name. The model number as found on the type label and in service documentation is likely to be 22AH684.

  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Günter Döring. See "Data change" for further contributors.
