• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197981

• • Brand: Deutsche Philips-Ges.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 180 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi-Receiver 686TA - Philips Radios - Deutschland

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 482 x 150 x 405 mm / 19 x 5.9 x 15.9 inch

• Notes
• PLL-Decoder, Schwungradabstimmung, 2 Instrumente zur Feldstärke und UKW-Mittenanzeige, Automatische UKW-Scharfabstimmung (AFC), Anschluss Stereo-Kopfhörer frontseitig, Mikrofon-Anschluss frontseitig, 2 Lautsprecherkreise für "Stereo-4" Raumklang-Effekt.
  2x90W an 4 Ohm, 2x75W an 8Ohm.

• Source of data

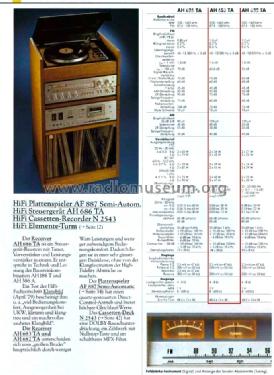

• -- Original prospect or advert

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
