- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1966–1968
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 26730
-
- Brand: Deutsche Philips-Ges.
HiFi Jahrbuch III 1967/68
- Number of Transistors
- 23
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 40 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

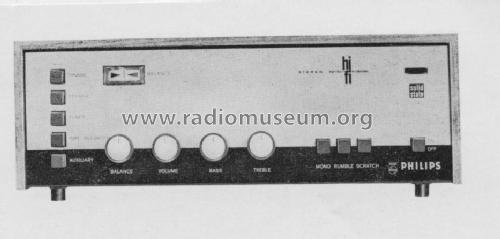

- Model: GH919 - Philips Radios - Deutschland
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 370 x 140 x 260 mm / 14.6 x 5.5 x 10.2 inch
- Notes
- HiFi-Stereo-Verstärker mit 2 Endstufen je 20 W.
Festeingebautes Rumpelfilter: 12dB/Okt. bei 25 Hz; schaltbares Rumpelfilter: 12dB/Okt. bei 130 Hz; schaltbares Rauschfilter: 12dB/Okt. bei 3 kHz.
Anzeigeinstrument für elektrische Balance.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1966/1967
- Mentioned in
- HiFi Jahrbuch III 1967/68 Seite 78
