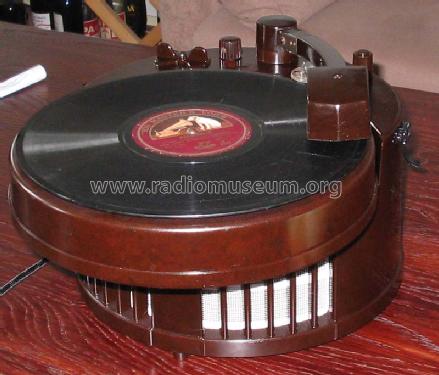

Hoedendoos 952A
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1942
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 100306
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Hoedendoos 952A - Philips; Eindhoven tubes
- Dimensions (WHD)
- 270 x 200 x 270 mm / 10.6 x 7.9 x 10.6 inch
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Pim J.H. Vercoulen. See "Data change" for further contributors.
