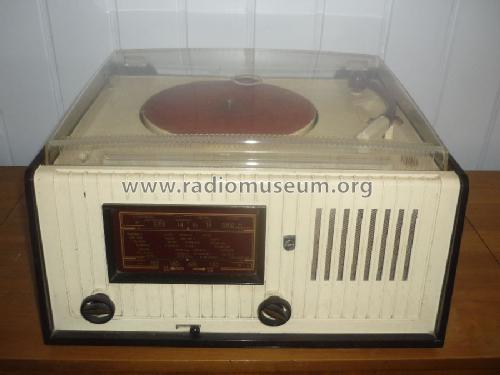

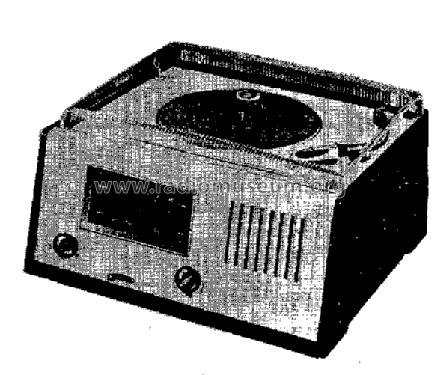

HX348A /01 /61
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30147
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-127 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: HX348A /01 /61 - Philips; Eindhoven tubes
- Dimensions (WHD)
- 380 x 200 x 355 mm / 15 x 7.9 x 14 inch
- Notes
-
Pl. Spieler: AG2002, Ausf. 00 für 220V, Ausf. 01 für 110-127V
Version /61 is identical to version /01, however, the record player is designed for a mains supply of 60 Hz.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
