- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30157
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

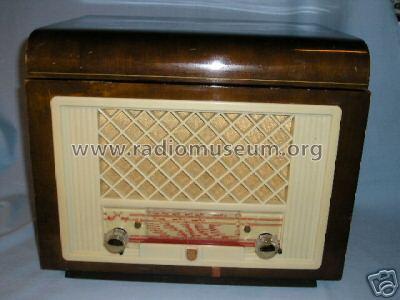

- Model: HX428A /00 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 380 x 315 x 310 mm / 15 x 12.4 x 12.2 inch
- Notes
- Pl.Spieler: Type AG2001 bei Ausf. 00, Pl.Spieler: Type AG2002-60 bei Ausf. 01
- Net weight (2.2 lb = 1 kg)
- 7.2 kg / 15 lb 13.7 oz (15.859 lb)
- Price in first year of sale
- 285.00 Hfl
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
