Integrated Stereo Amplifier 306 22AH306 /00

• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1981

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 209493

• Picture

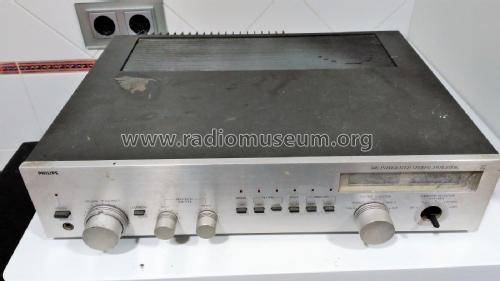

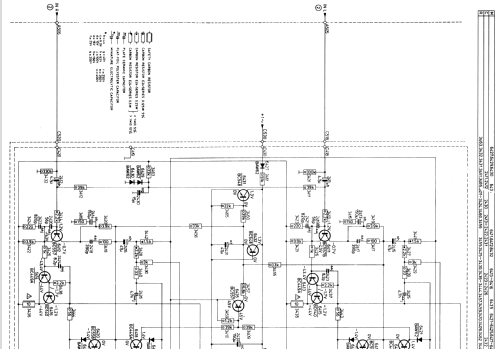

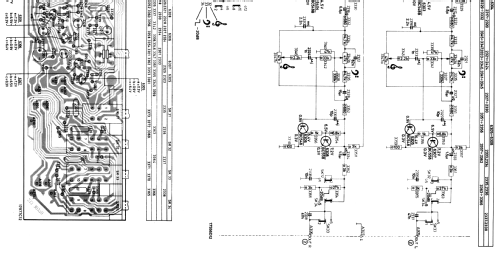

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Integrated Stereo Amplifier 306 22AH306 /00 - Philips Belgium Belgien

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 405 x 102 x 287 mm / 15.9 x 4 x 11.3 inch

• Notes
• Integrated Stereo Amplifier.
  FTC-Ausgangsleistung: 2 x 60 Watt, 20 - 20.000 Hz, 8 Ohm, 0,2%.
  Leistungsbandbreite: 15 bis 35.000 (+ /-3dB)
  Lautsprecher-Ausgang: 8 Ohm; Kopfhörer: 8-600 Ohm.
  Bass-, Treble-Control, Loudness, High- / Low-Filter, Mute -20dB, 2x Analog Power Needle Meters.
  Made in Belgium.
