Intergrated Stereo Amplifier 22AH307 /00 /15
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1977 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 272859

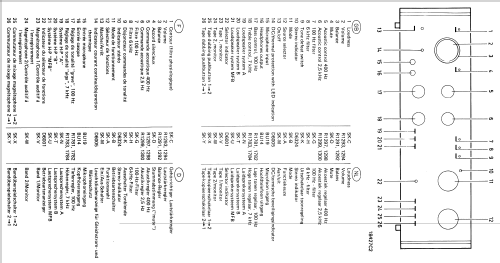

Aus dem Servicemanual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 120 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Intergrated Stereo Amplifier 22AH307 /00 /15 - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Notes
-
HiFi-Stereo-Verstärker
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
