Jubilee 4 130A
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192021
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 2 x 45 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Jubilee 4 130A - Philips Australia
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 268 x 200 x 180 mm / 10.6 x 7.9 x 7.1 inch
- Notes
-
Price is for Walnut & Mahogany. Ivory case, £30/5/-.
Batteries external to radio.
- Price in first year of sale
- 29.65 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. X
- Mentioned in

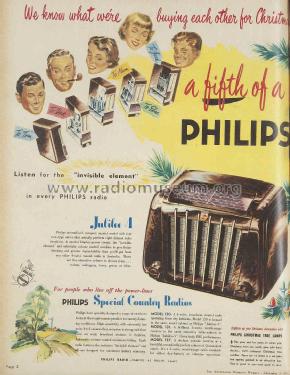

- -- Original prospect or advert (The Australian Women's Weekly 5 Dec 1951 Page 2.)
- Literature/Schematics (1)

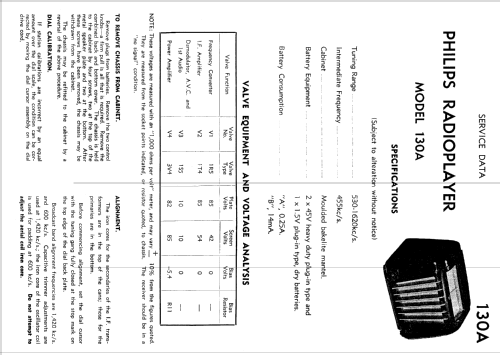

- - - Manufacturers Literature (Philips Radioplayer Service Data)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 228.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
