• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7106

• • Brand: Deutsche Philips-Ges.

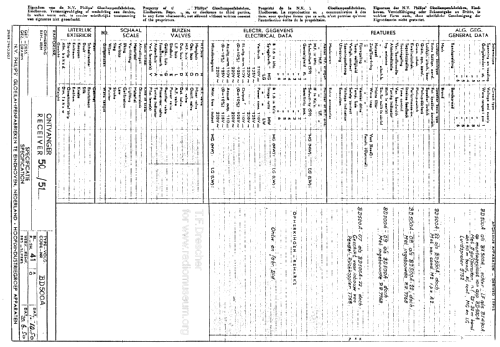

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF42 EF41 ECH42 EAF42 EM4 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; Super Regenerativ

• Tuned circuits
• 6 AM circuit(s)     2 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Jupiter BD500A-09 [Ausführung MU ] - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 517 x 330 x 210 mm / 20.4 x 13 x 8.3 inch

• Notes
• Mit eingebautem UKW-Teil Philips Typ 7768.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 350.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau (5016)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 2542 models, 2254 with images and 1564 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
