Jupiter Stereo Truhe 12RF660
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1967–1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27095
-
- Brand: Deutsche Philips-Ges.
Bedienungsanleitung

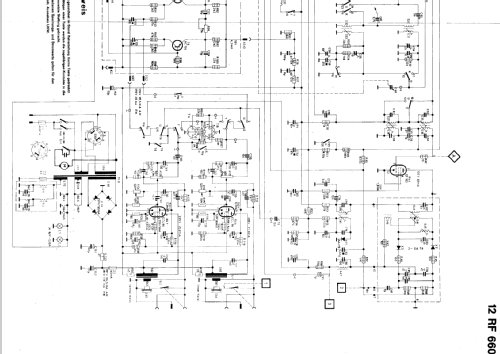

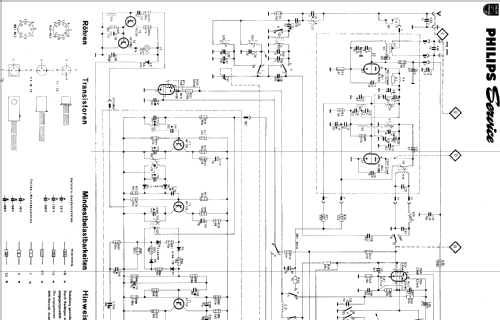

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-127; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Jupiter Stereo Truhe 12RF660 - Philips Radios - Deutschland
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1320 x 715 x 390 mm / 52 x 28.1 x 15.4 inch
- Notes
- Rundfunk-Chassis = 12RB461; Vollstereo, NF-Verstärker mit zwei Endstufen je 5,5 W;
Phono-Chassis = GC040 mit Kristallsystem AG3306.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Price in first year of sale
- 775.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1967/1968
- Mentioned in
- Taxliste Franzis Verlag
