• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1964–1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25873

• • Brand: Deutsche Philips-Ges.

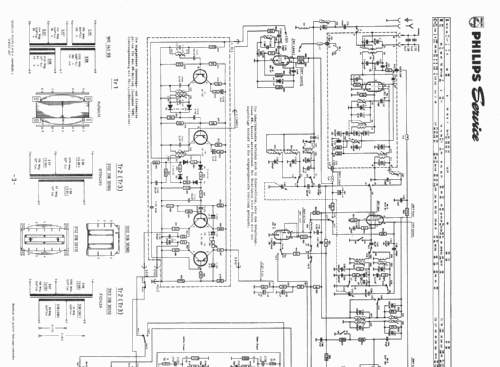

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EAF801 EF184 EM87 EM87 ECC808 ECL86 ECL86

• Number of Transistors
• 4

• Semiconductors
• AF126 AF126 AF126 AF126

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

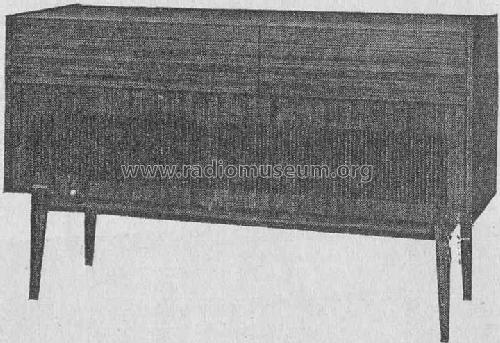

• Model: Jupiter Stereo Truhe F6D42A /05 - Philips Radios - Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1240 x 700 x 365 mm / 48.8 x 27.6 x 14.4 inch

• Notes

• Stereo-Decodereingebaut; Stereo-NF-Verstärker mit 2 Endstufen je 4,5 W;
  Phono-Chassis = AG1025 (WC80).

• Net weight (2.2 lb = 1 kg)
• 48 kg / 105 lb 11.6 oz (105.727 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965

• Mentioned in
• Handbuch VDRG 1965/1966 (Handbuch VDRG 1966/1967)
