Jupiter-Truhe 662 FD662A
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 20780
-
- Brand: Deutsche Philips-Ges.

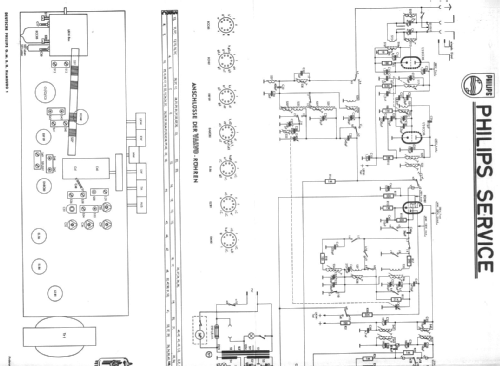

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Jupiter-Truhe 662 FD662A - Philips Radios - Deutschland

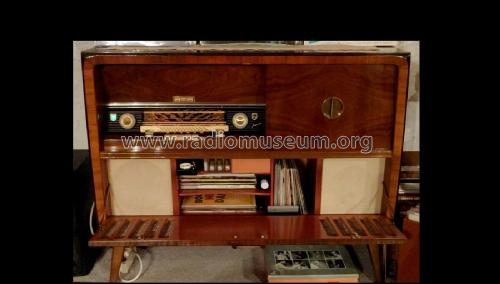

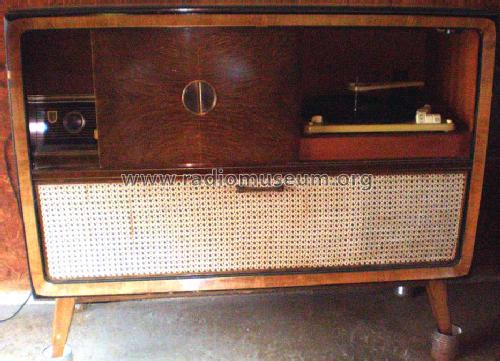

- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1000 x 820 x 395 mm / 39.4 x 32.3 x 15.6 inch
- Net weight (2.2 lb = 1 kg)
- 36 kg / 79 lb 4.7 oz (79.295 lb)
- Price in first year of sale
- 785.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
