• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 124889

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AF239 AF239 AF239 AF139 AF139

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

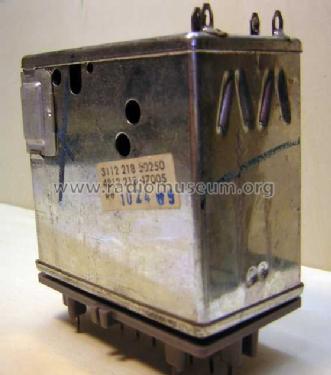

• Model: VHF/UHF Kanalwähler KD2 4812 210 47105 - 4812 210 47005 - 3112 218 50360 - 12ET5631/20 - Philips Radios - Deutschland

• Notes
• VHF/UHF Kanalwähler, abstimmbar durch Kapazitätsdioden(BB105B), mit abstimmbaren Vorkreisen. Auch mit Kabelfenbedienung steuerbar.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
