• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145363

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA85

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Fanette L0X90T /01 - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 82 x 32 mm / 5.5 x 3.2 x 1.3 inch

• Notes
• Philips All Transistor L0X90T/01,

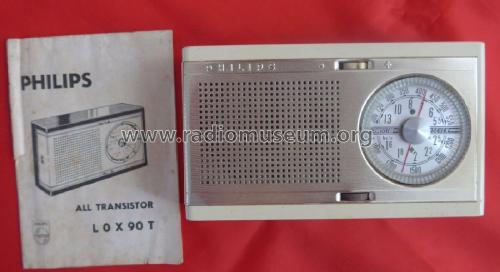

  Case: front - black plastic with gold coloured metal ornamental face plate, rear - ivory coloured plastic cover. Socket for earphone /1000 ohm/ - 2 pin flat plug. This model was also manufactured in England as L0G90T - in at least two versions - with reversed scale! The Dutch version of the radio - L0X90T is also marked as LOX90T in a Dutch service manual but this is simply a typing error. You find different scale versions also in the models from the Netherlands.

• Net weight (2.2 lb = 1 kg)
• 0.425 kg / 0 lb 15 oz (0.936 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers. (Source: Philips Central Service Department in Croydon, Surrey, the U.K.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 5275 models, 4421 with images and 3460 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
